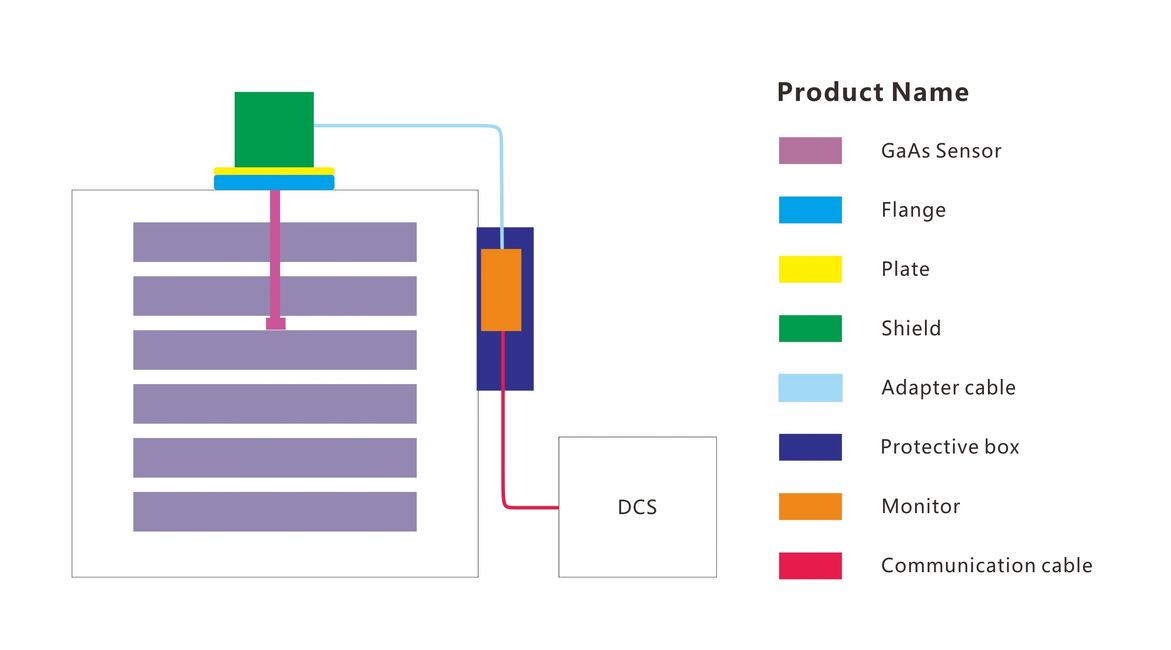

Product system configuration

Device                                 Type           Specification

Oiled Transformer               W28           W28-XX-XXX

Hot-spot Temperature          W29           W29-XX-XXX

Monitor                               W18            W18-XX-XXX

                                           W19            W19-XX-XXX

Remark: e.g. W18-81-000

8 channels, measuring range -40-250℃, default type

GaAs fiber optic                   WS01         WS01-XX-XX

temperature sensor

Remark:e.g.:WS01-51-00

5 meters, measuring range -40-250℃, default type

Optical penetration              WP01        WP01-XX-XX

adapter plate

Remark:e.g.:WP01-81-00

8 channels, connector type ST, default type

Flange                                  WF01        WF01-XX-XX

Remark: e.g.:WF01-11-00

Flange diameter 254, O-ring diameter 3.55, default type

Adapter cable                       WB01        WB01-XX-XX

Remark: e.g.:WB01-51-00

5 meters, connector type ST, default type

Shield                                  WH01         WH01-X-XXX

Remark:e.g.:WH01-1-000

Protective pipe interface 1 inch external thread, default type

Protective housing               WX01          WX01-XX-XX

Remark:e.g.:WX01-14-00

Visible window, 4 wire holes, default type
