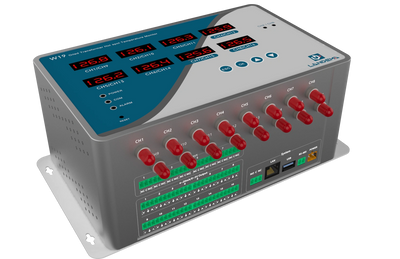

Oiled Transformer Hot-spot Temperature Monitor W19

• 4 bits digital tube display, adaptable in harsh environment;
• Automatic diagnosis and evaluation of sensor working status；
• Closed loop control, always working in the optimal state；
• GaAs material properties and internal self-calibration algorithm, no drift in life-time；
• 4-20mA or 0-5V analog output optional;
• 8 C-type relays and 1 system relay;
• Simultaneous output available of RS-485 signal, LAN and analog.

• Channels: CH9-CH16(Optional)
• Temperature range: -40°C to 250°C
• Temperature accuracy: ±1 °C （full scale +/-1%）
• Resolution ratio: 0.1 °C
• Sampling frequency (per channel): 250ms
• Light source life: >30 years
• Hardware interface: DC/24V input*1

                                           Optic port*X（X is channel count）

                                           USB*1

                                           LAN*1

                                           Analog port*X（Optional）

                                           RS-485*1

                                           Relay*9（C-type*1+system relay*1）

• Communication protocol: Modbus (ASCII/RTU)

                                                  Modbus（TCP-IP）

                                                  IEC61850*（optional）

• System status display: LED
• Relay rated load: 8A at 250 VAC

                                       5A at 30 VDC

• Storage: 2GB
• Automatic calibration:based on internal temperature compensation
• Automatic diagnosis: Light value
• Display screen: 8-channels 4 bits digital tube
• Power: DC/24V

              (Power conversion module provided in the protective housing)

• Power consumption 12W（Max.）
• Volume: 277mmx150mm*109.2mm
• Operating temperature: -20°C to 55°C
• Storage temperature: -30°C to 85°C
• humidity: 95% RH（Non-condensable water）

  Temperature monitor

   e.g.：W18-81-000

           ——Model   W

           e.g. 18

• ——18：Digital tube type
• ——19：Multi channel digital tube
• ——28：LCD type
• ——29：LCD Multi channel type

            ——Channel count e.g.8

• ——2-9：2-9 channels
• ——10 channels and above, and so one

           —— Temperature measuring range e.g. 1

• ——1：-40-250℃

           ——Distinguishing code e.g.000

• —000:Default type
