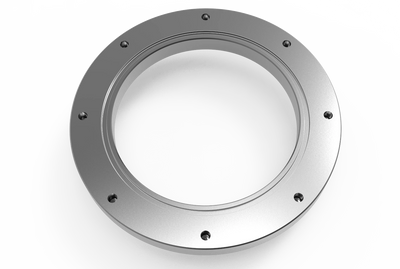

Flange WF01
Product feature
- 304 stainless steel；
- High-temperature resistant fluorine-containing sealing washer.
Technical parameter
- Outer diameter 254mm
- Inner diameter 176mm
- Thickness 20mm
- Material 304 stainless steel
- Screw hole M10*12, 8pcs
Selection guide
Flange
e.g.：WF01-11-00
——Model WF
e.g. 01
- ——01：Default type
——Outer diameter e.g. 1
- ——1：254.0mm
——Wire diameter of sealing washer e.g. 1
- ——1：3.55mm
——Distinguishing code e.g.00
- ——00: Default type
