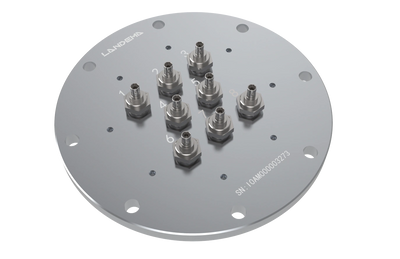

The optical penetration adapter plate WP01

•  304 stainless steel；
•  Low insertion loss；
•  Maximum withstand pressure 2Mpa；
•  High-temperature resistant design.

• Channel count: 2-16
• Temperature range: -40°C to 200°C
• Max withstand pressure: 2Mpa
• Screw type: 3/8-16 NPT 60°C
• Optical penetrator materials: 304 stainless steel
• Height of optical penetrator: 51.3mm
• Optical penetrator insertion loss: <0.5dB
• Optical connector type: ST
• Optical penetration, fiber type: 62.5um（quartz optical fiber）
• Adapter plate diameter:  254mm
• Adapter plate thickness: 12mm
• Adapter plate material: 304 stainless steel
• Periphery fixed screw: 304 stainless steel，M10*12,8pcs
• Screw holes on adapter plates: 304 stainless steel
• Dust cap: High-temperature resistant rubber（-60°C to 200°C）

Optical penetration adapter plate

e.g.：WP01-81-00

           ——Model  WP

           e.g.01

• ——01：Default type

           ——Channel count  e.g.8

• ——2-9：2-9 channels
• ——10 channels and above, and so one

           ——Connector type  e.g.1

• ——1：ST

           ——Distinguishing code  e.g.00

• ——00: Default type
